Genesis PLUS CNC Nesting Machine
The Genesis PLUS is a nesting CNC machine for wood panel processing in furniture and cabinetry production. Available in two table sizes, it combines routing and drilling with material-handling and automation options to support an efficient workflow from sheet loading to finished parts.
Key features:
Spindle and tooling: Review the spindle specification, tool interface and tooling options for the selected Genesis PLUS configuration.
High-Speed & Precision Motion: Achieves vectorial speeds of up to 127 m/min with a robust structure incorporating Bosch Rexroth linear bearings on all axes, ensuring precision and durability.
Material handling: Review available loading, unloading and labelling options for the selected configuration and your production workflow.

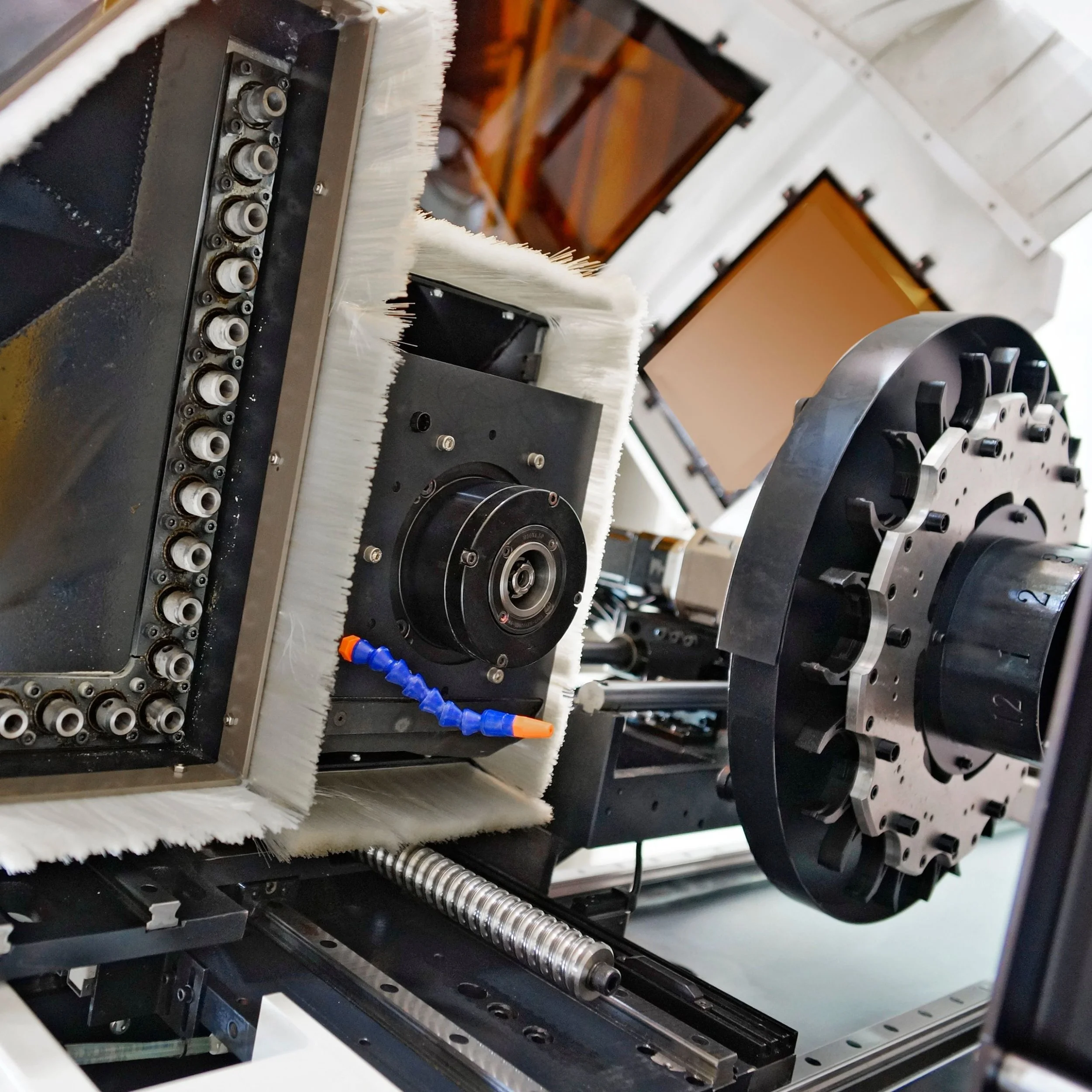

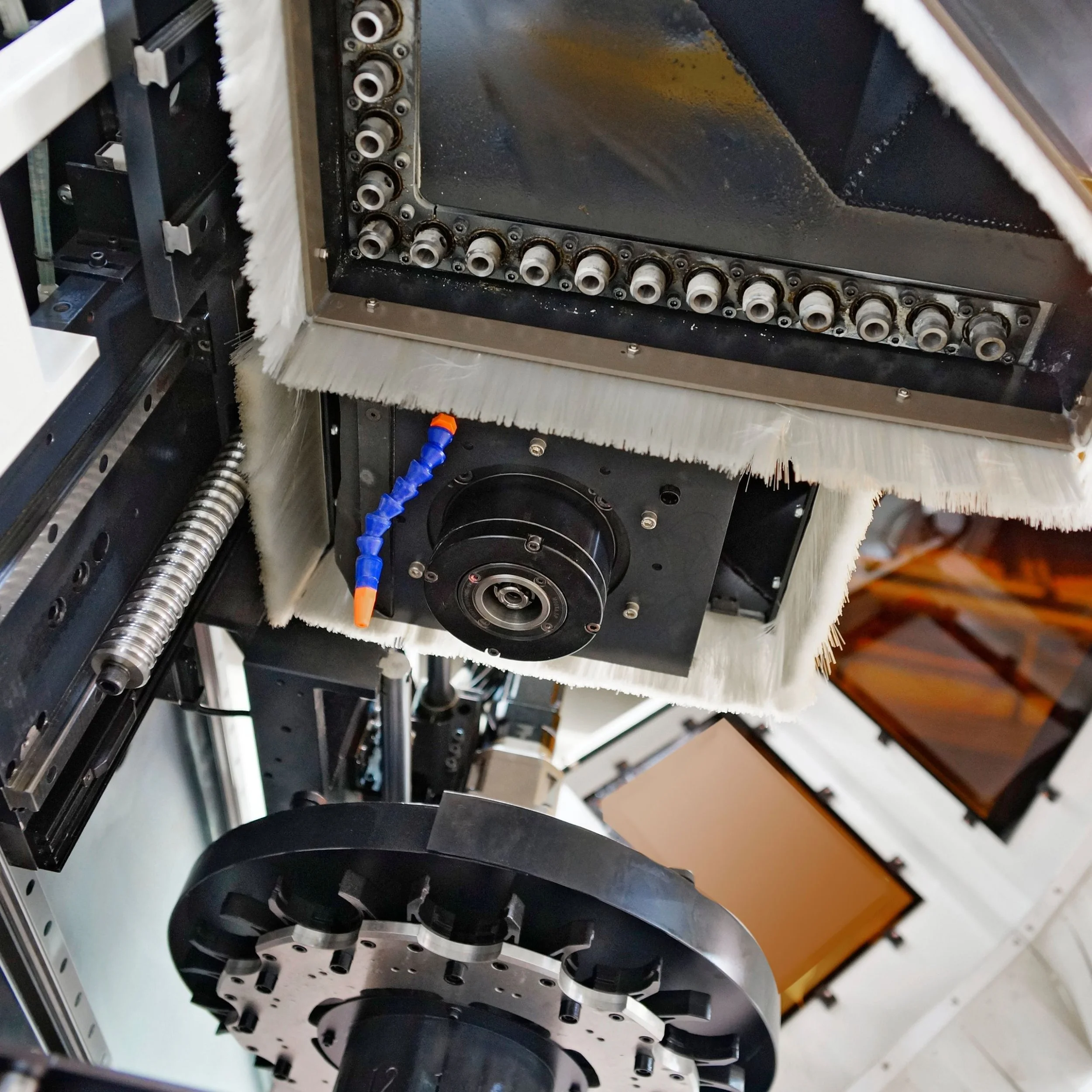

Automated Tool Changing & Drilling: Equipped with 12 automatic tool positions for efficient material handling and includes a high-speed drilling unit (e.g., 12x7 vertical drilling head) for versatile boring operations.
Size Options: Comes in two standard sizes - Genesis Plus 49: 2700x1300 mm and Genesis Plus 612: 3700x1900 mm - to suit various production requirements and factory footprints.
Planning cabinet production? Read our cabinet CNC equipment guide for the questions to bring to a supplier discussion, and our cabinet production workflow guide for job release, nesting, labelling and assembly handoffs.
Photos
Genesis PLUS 49

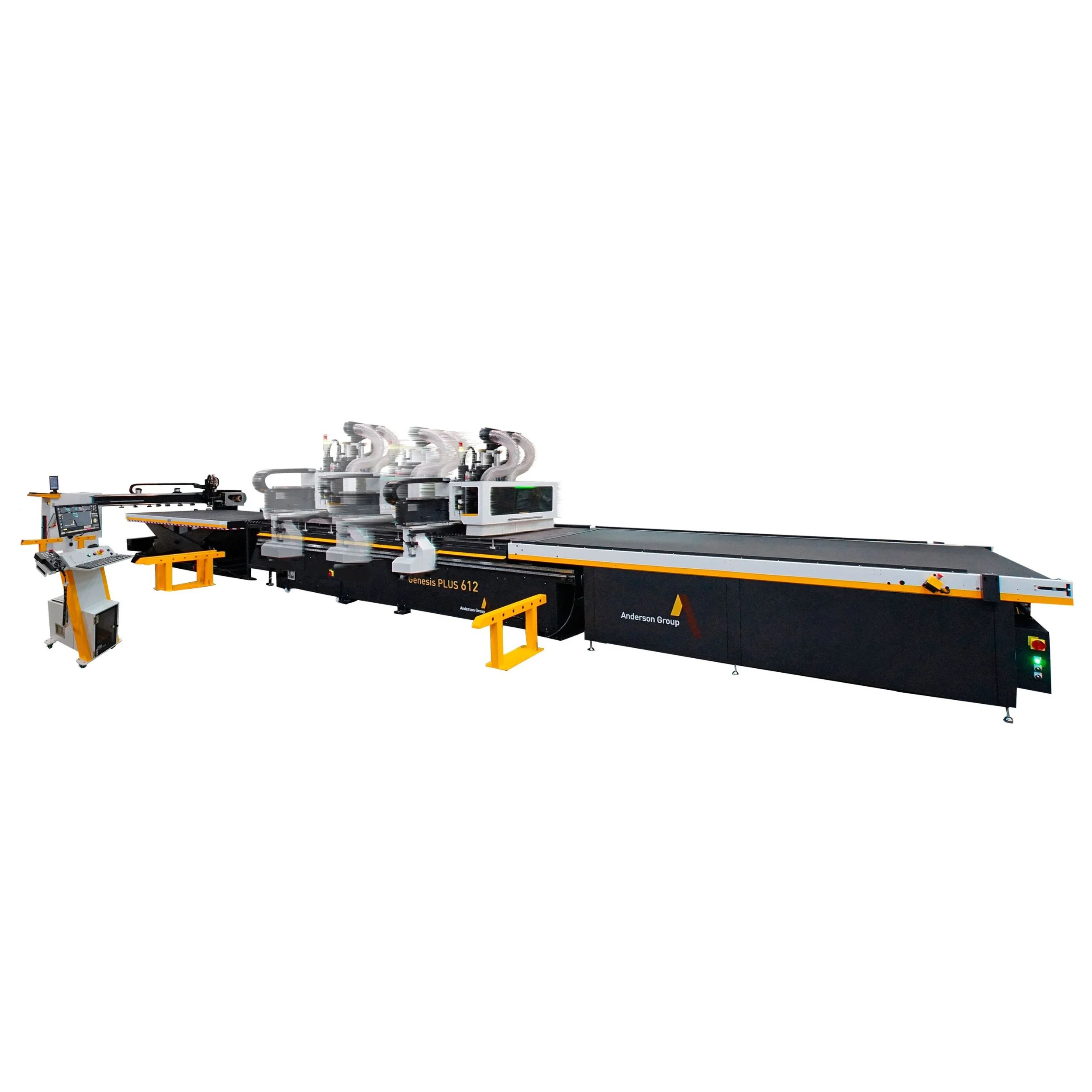

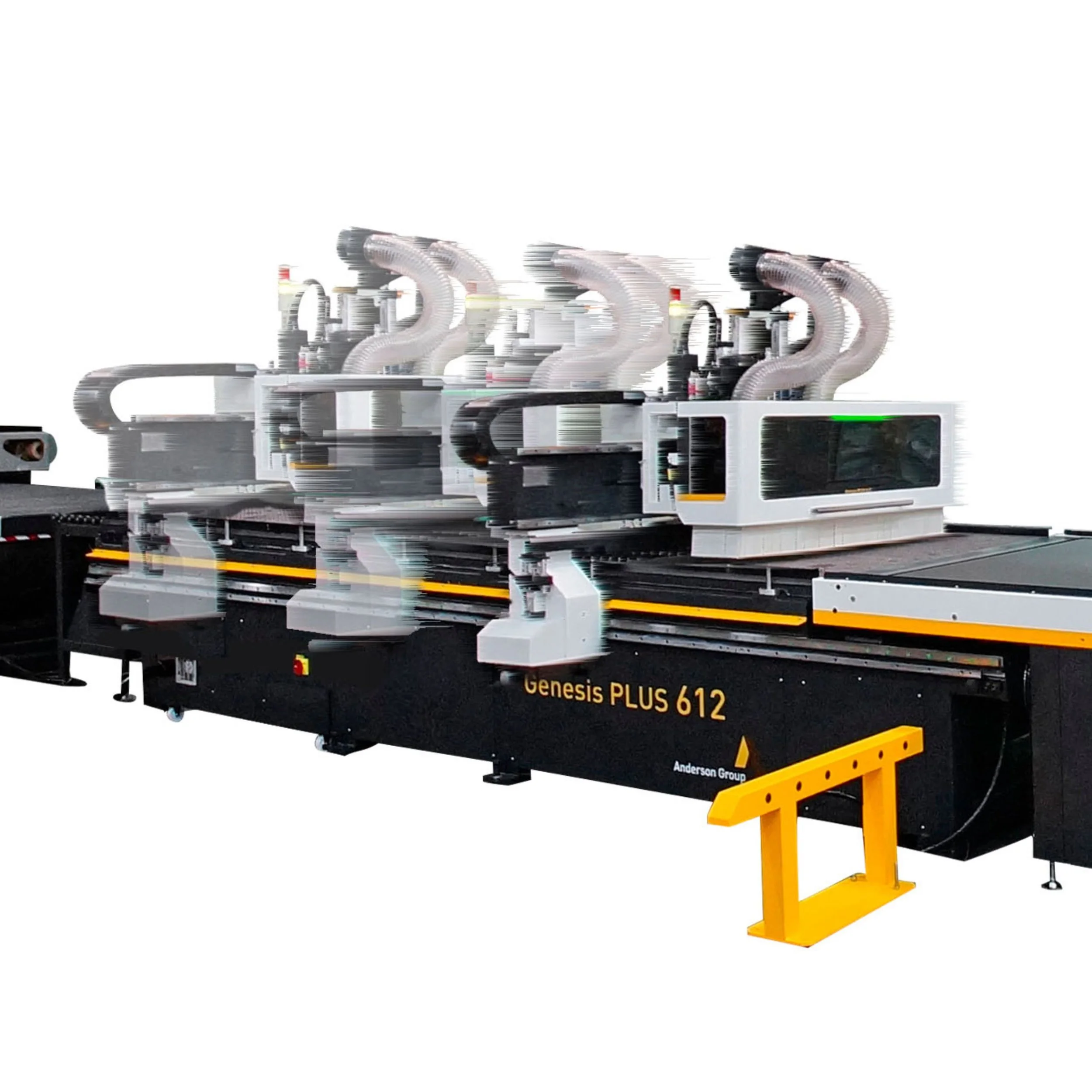

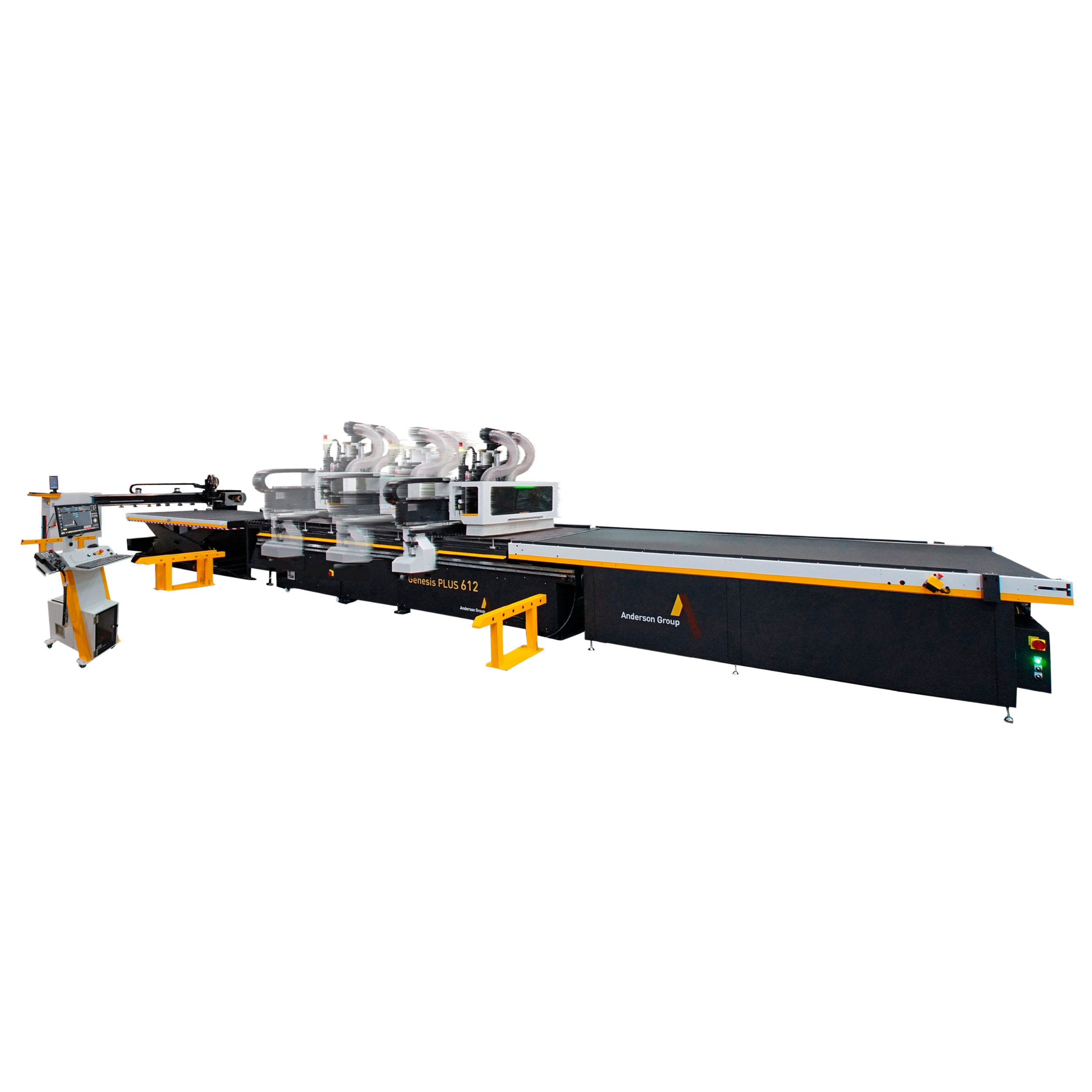

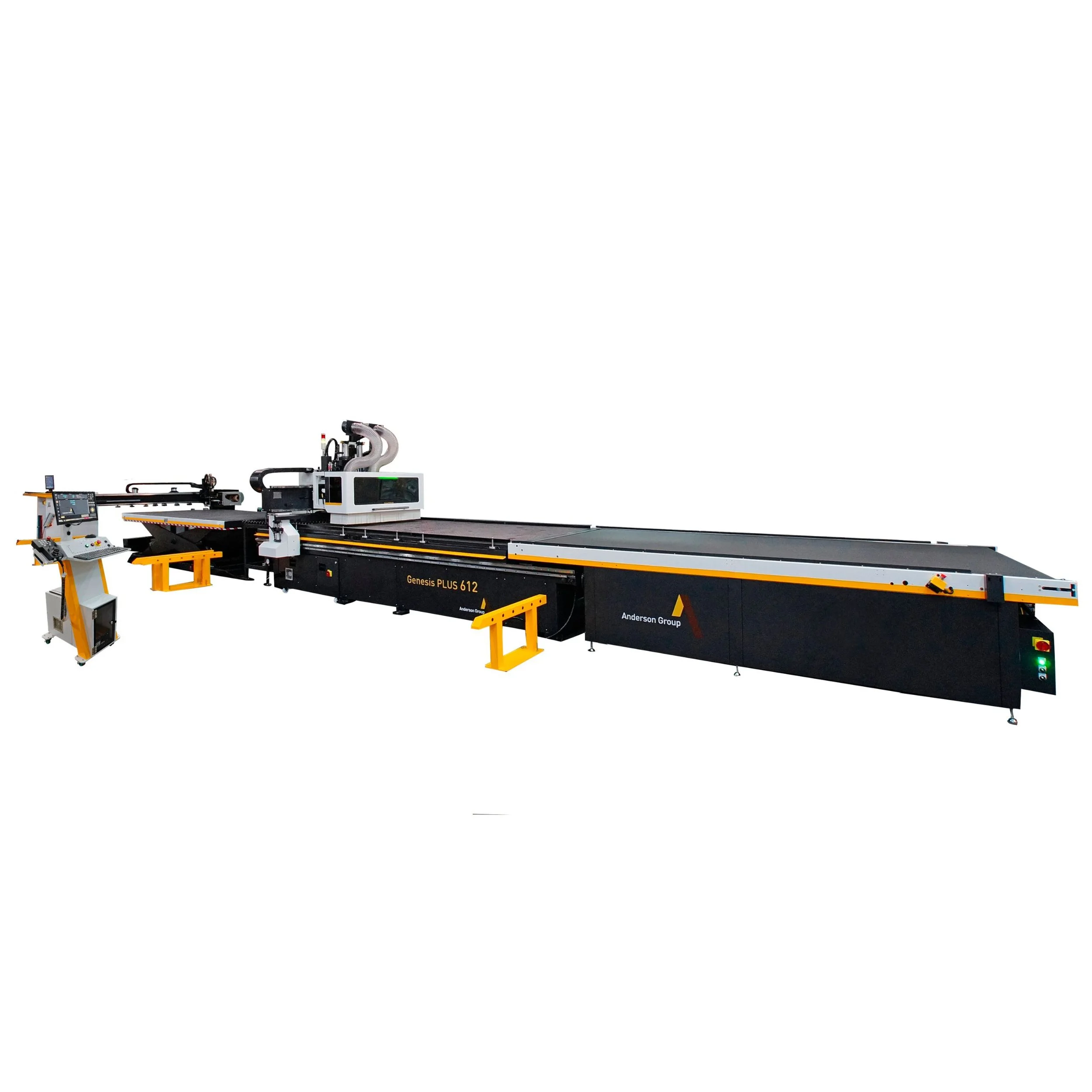

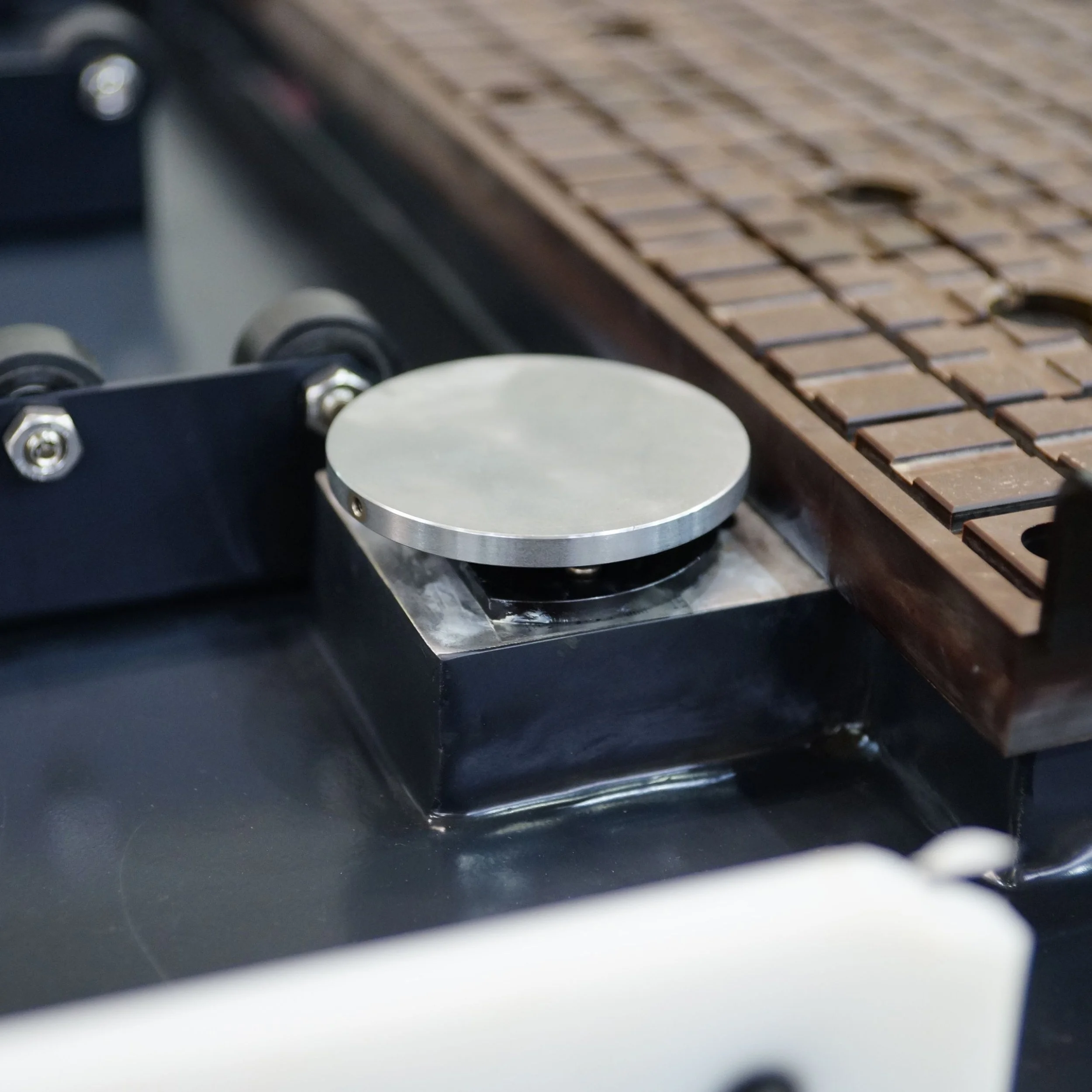

Genesis PLUS 612
Genesis PLUS
Genesis PLUS
Genesis PLUS
Genesis PLUS
Genesis PLUS
Genesis PLUS
Genesis PLUS
Genesis PLUS
Genesis PLUS
Genesis PLUS
Genesis PLUS
SPECIFICATIONS:
| MODEL: | Genesis PLUS 49 | Genesis PLUS 612 FL | |
|---|---|---|---|
| APPLICATION | Panel Process | ||
| STROKE | X AXIS | 4450 mm | 4450 mm |
| Y AXIS | 2300 mm | 2300 mm | |
| Z AXIS | 200 mm | 200 mm | |
| TABLE SIZE | 2700 mm x 1300 mm | 3700 mm x 1900 mm | |
| VACUUM AREA | 4 | 4 | |
| MAX FEED SPEED | X AXIS | 90 m/min | 90 m/min |
| Y AXIS | 90 m/min | 90 m/min | |
| Z AXIS | 30 m/min | 30 m/min | |
| NO. 1 ATC HEAD | SPEED | 1000~21000 rpm | 1000~21000 rpm |
| SPINDLE NOSE | HSK-63F | HSK-63F | |
| NUMBER OF TOOLS | 12 | 12 | |
|
NO. 2 MULTI-DRILL
12x7
|
DRILL ROTATION SPEED | 6000 rpm | 6000 rpm |
| SHANK OF DRILL | Ø10 mm | Ø10 mm | |
| TOOLING | SHANK OF ROUTER BIT | Max. Ø25 mm(1 in) | Max. Ø25 mm(1 in) |
| POWER | NO. 1 ATC AIR-COOLED | 11 kW x1 | 11 kW x1 |
| NO. 2 MULTI-DRILL | 2.2 kW x 1 | 2.2 kW x 1 | |
| VACUUM PUP 250 CBM/HR | 6.6 kW x 2 | 6.6 kW x 2 | |
| AIR PRESSURE | HOSE:3/4" | 6 kg/cm2(85 lb/in2) | 6 kg/cm2(85 lb/in2) |
| CONSUMPTION | 330 L/min(11 cfm) | 330 L/min(11 cfm) | |
| NC CONTROLLER | SYNTEC 21MA | SYNTEC 21MA | |
| DIMENSIONS | FLOOR AREA | 5800 mm x 4470 mm | 15500 mm x 5500 mm |
| HEIGHT | 2500 mm | 2500 mm | |
| WEIGHT | 4200 kg | 8500 kg |
